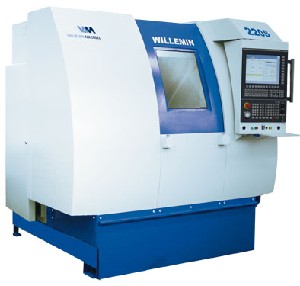

3 axis chucker dedicated to Watch Industry and high
precision Engineering.
|
|
Technical Data |
|
203S |
220S |
|
Travel |
|
|
|
|
Longitudinal, X axis |
mm/in |
500/20 |
800/32 |
|
Transversal, Z axis |
mm/in |
|
24 |
|
C axis |
° |
|
560 |
| |
|
|
|
|
Spindle |
|
|
|
|
Spindle speed |
rpm |
50-6000 |
50-6000 |
|
Spindle power |
kw/hp |
3.7/5 |
13.5/18 |
|
Chuck machining (max
Ø) |
mm |
100 |
100 |
| |
|
|
|
|
Table |
|
|
|
|
Dimensions |
mm |
550*160 |
900*160 |
|
Number of tools |
|
10 |
12 |
|
CNC |
|
|
P |
|
Fanuc |
|
|
21i |
|
OPTIONS |
|
|
|
|
Filtration systems |
|
|
P |
|
Measurement scale |
|
|
P |
|
Tool breakage detector and tool setting device
|
|
|
P |
|
Front and side machining units with auxiliary
spindles |
|
|
P |
| |
|
|
|
|
